Gabion Erosion Control

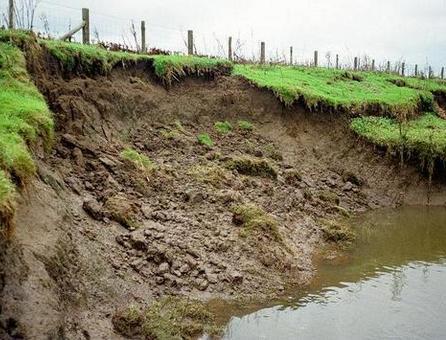

HOW TO CONTROL RIVER EROSION

Gabion river and stream erosion benfits are…

Rapid construction and immediate use

Dissipate flowing water energy

Semi flexible building blocks for channel stabilisation.

Have an irregular surface to diffuse and reduce river bank scouring

Much cheaper, more flexible and greener than concrete

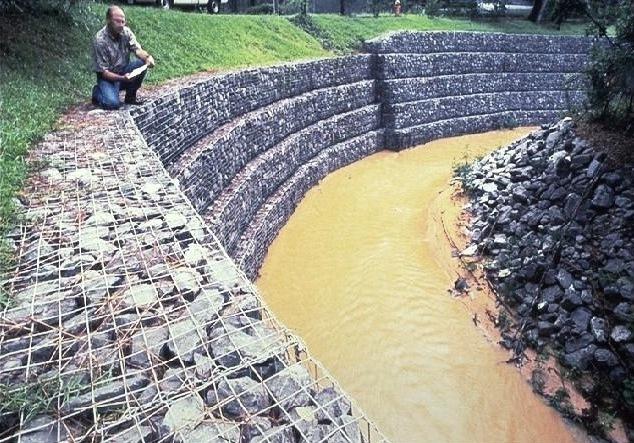

How gabion erosion cages work

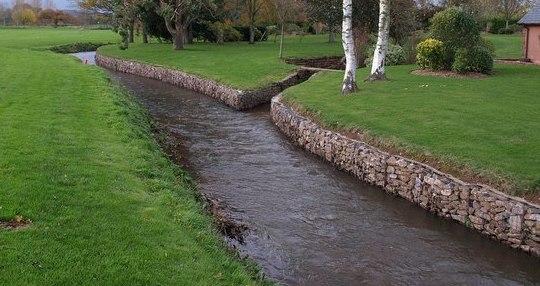

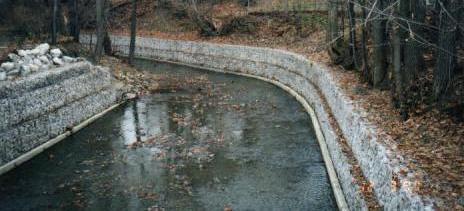

Gabion baskets placed on the outside of the river bend to prevent river bank erosion during floods. Geotech filter fabric is placed behind and underneath the gabion baskets to prevent the movement of soil material through the gabions.

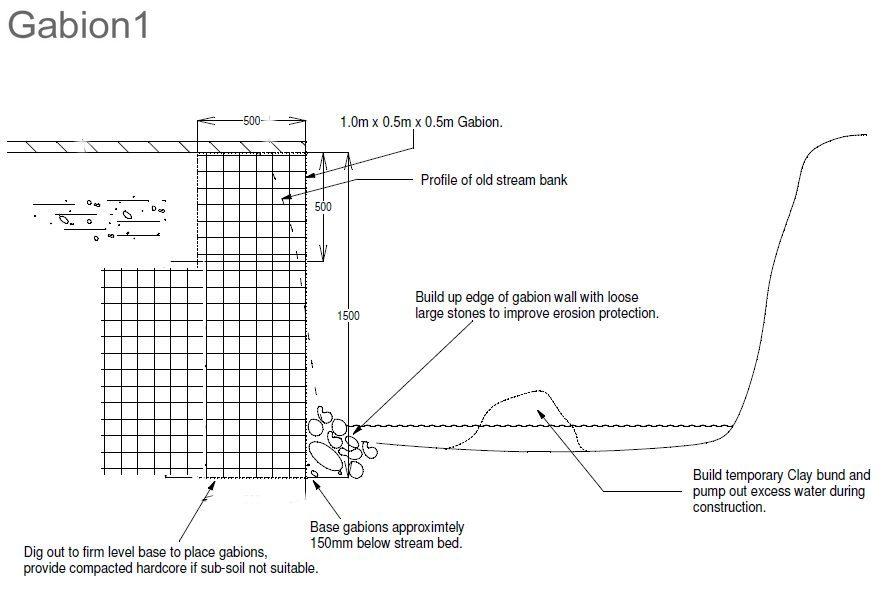

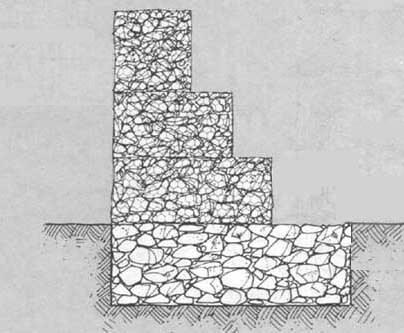

Design for expected maximum scour depth

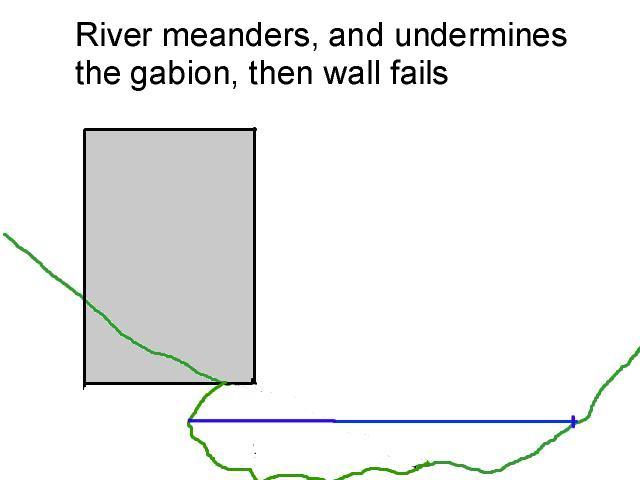

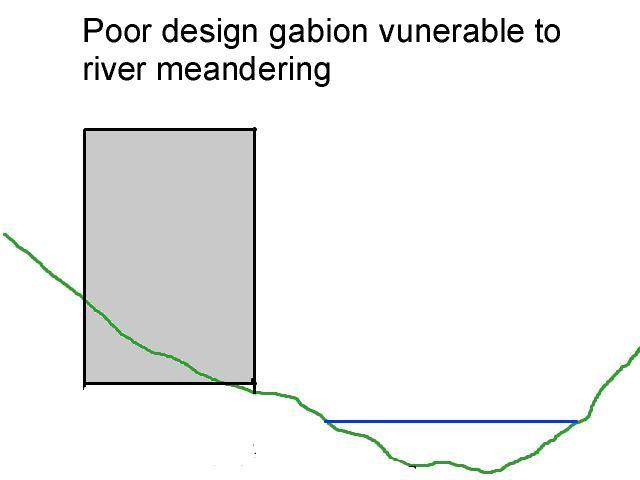

The base layer of gabions must be placed below the expected maximum scour depth, or the toe can be protected with gabion mattresses

Design for peak flood events

Gabion flood projection must be designed to cope with peak river flows often referred to to as 1 in 50yr, or 1 in 100yr floods. This often requires larger gabion walls and foundations, than envisaged. An engineer is able to examine historical weather data, and design for the expected flood events over the life time of the wall.

Gabions are ready for immediate use

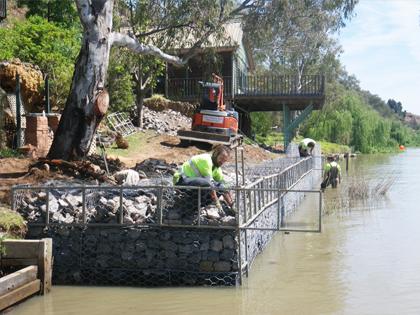

Machine and hand filling gabions, is often possible to avoid having to divert the river with a bund

Temporary bund

Building a temporary bund, to often done, to speed up construction

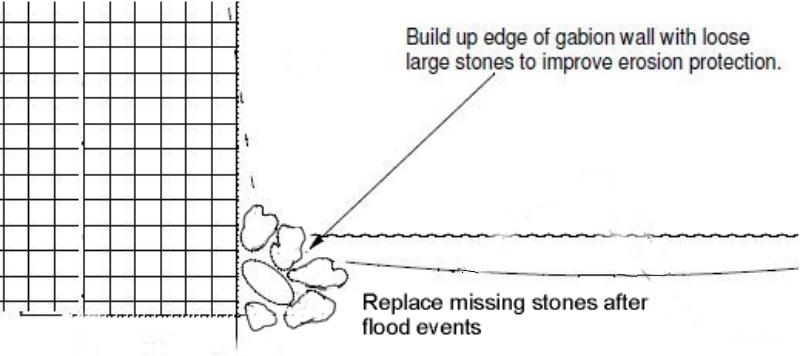

Scour protection

Placing large rocks, at the base of the gabion, provides added erosion protection. These rocks may need to be inspected and replaced after flood events

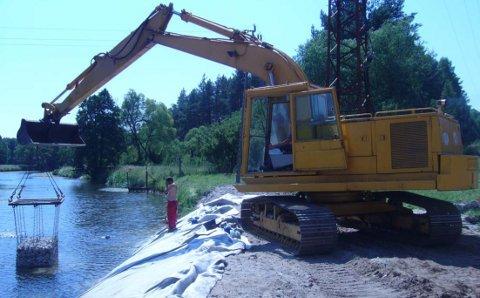

Lifting Cradle System

Allows gabions to be pre filled and lowered into place for immediate protection.

Flexible to Ground Movement

Gabions can flex to ground movement, dissipate energy from flowing water, and drain freely.

Uses the strongest wire mesh

In locations where high flood water velocities are expected, carrying woody debris and gravels in suspension, the stronger 4ga or 5ga welded gabions are the preferred choice, to resist damage to the gabion structures during floods.

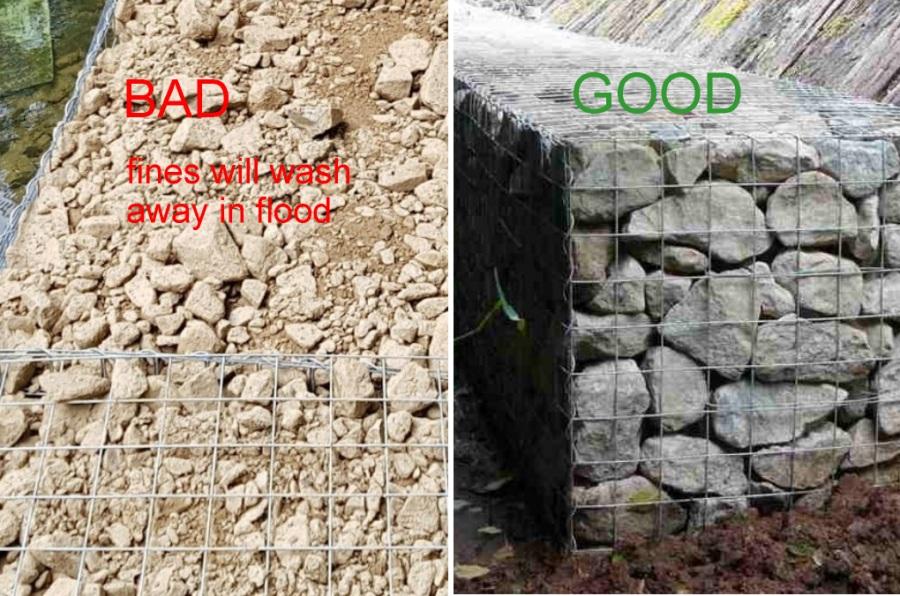

Rock grading

The rock grading for erosion control gabions must be .between 3″ to 8″ sizing Non durable fine material is not acceptable
