Gabion Assembly
Instructions for low cost stone walls.
Cheap easy to build gabion rock walls, shipped all over the USA in kit set

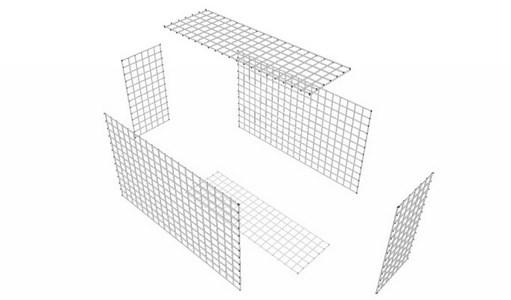

6 gabion panels are used to construct the first gabion, see video

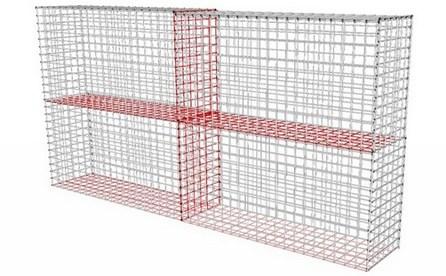

Shared end panels may not be needed
Unseen internal panels can be 1/8th wire mesh
Check out the info on foundations

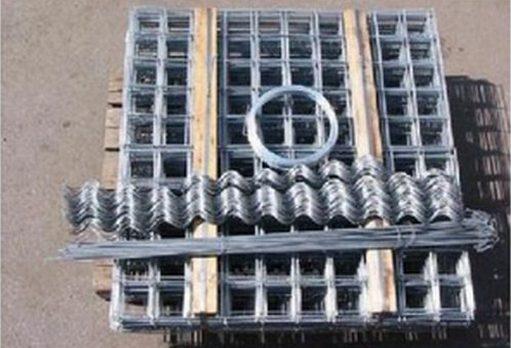

Gabion kitset ready for dispatch
Watch our youtube video on Helical connectors
Watch our youtube video on brace wire installation
Gabion which mesh
How to assemble a gabion basket in 4 minutes
Gabions ready for rock, long gabions come with diaphragms

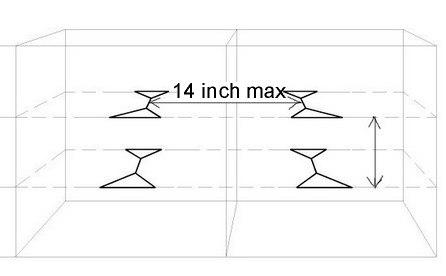

Max spacing of bracewires 14 inches in both directions
Temporary wires at the top of the gabion, will make it easier to install the lid

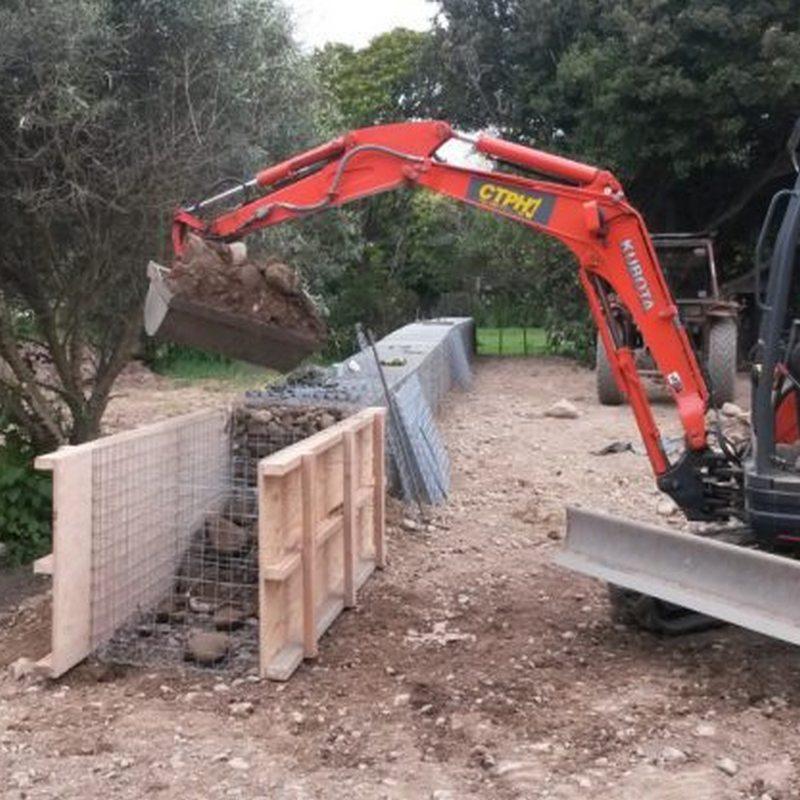

For 1/8th mesh, add temporary supports before filing gabions

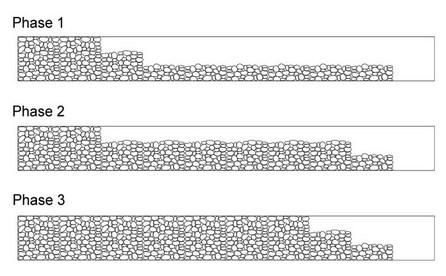

How to fill the gabions

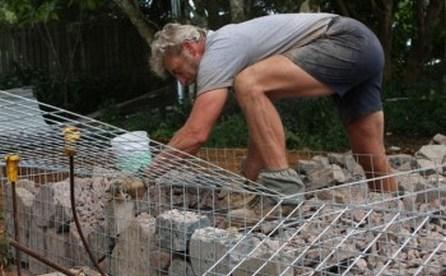

The "best rocks" are hand placed on the face of the gabion
Under or over sized rocks placed in the middle of the wall

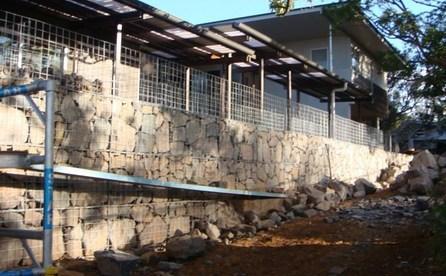

Additional rows of gabion baskets added to wall
